Weakly Connected Components (WCC)

Overview

The Weakly Connected Components (WCC) algorithm identifies groups of nodes connected through any path, disregarding edge directions. In a weakly connected component, every node is reachable from any other node when treating all edges as undirected. WCC serves as a common algorithm in scenarios such as:

Community detection
Data cleaning and preprocessing
Large-scale network analysis
Detecting isolated or loosely connected subgraphs

Algorithm Details

WCC initializes by assigning each node to its own component. It iteratively scans for edges linking nodes across different components and merges them, ignoring the directionality of edges throughout the process. The algorithm terminates when no further merges occur, producing a collection of disjoint connected components.

Performance

WCC operates with a time complexity of O(|V| + |E|), where:

|V| represents the total number of nodes
|E| represents the total number of edges This linear complexity makes WCC efficient for large graphs.

Syntax

CALL algo.wcc([config])

Parameters

The procedure accepts an optional configuration Map with the following parameters:

Name	Type	Default	Description
`nodeLabels`	Array	All labels	Array of node labels to filter which nodes are included in the computation
`relationshipTypes`	Array	All relationship types	Array of relationship types to define which edges are traversed

Return Values

The procedure returns a stream of records with the following fields:

Name	Type	Description
`node`	Node	The node entity included in the component
`componentId`	Integer	Identifier of the weakly connected component the node belongs to

Examples

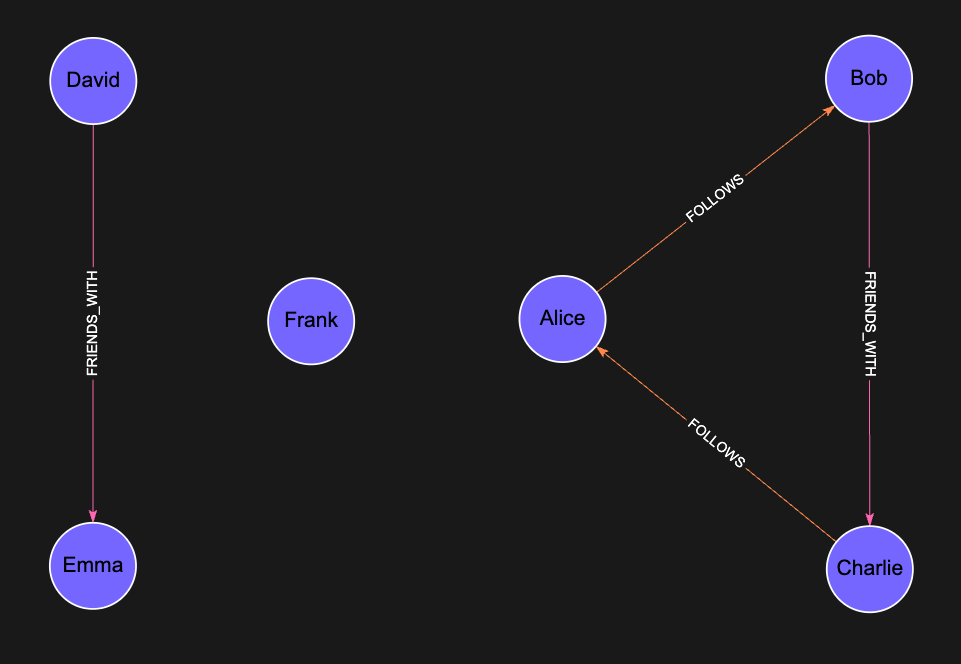

Let’s take this Social Graph as an example:

There are 3 different communities in this graph:

Alice, Bob, Charlie
David, Emma
Frank

Create the Graph

CREATE
  (alice:User {name: 'Alice'}),
  (bob:User {name: 'Bob'}),
  (charlie:User {name: 'Charlie'}),

  (david:User {name: 'David'}),
  (emma:User {name: 'Emma'}),

  (frank:User {name: 'Frank'}),

  (alice)-[:FOLLOWS]->(bob),
  (bob)-[:FRIENDS_WITH]->(charlie),
  (charlie)-[:FOLLOWS]->(alice),

  (david)-[:FRIENDS_WITH]->(emma)

CALL algo.WCC(null) yield node, componentId

Expected Results

node	componentId
`(:User {name: "Alice"})`	0
`(:User {name: "Bob"})`	0
`(:User {name: "Charlie"})`	0
`(:User {name: "David"})`	3
`(:User {name: "Emma"})`	3
`(:User {name: "Frank"})`	5

Example: Group Communities together into a single list

CALL algo.WCC(null) yield node, componentId return collect(node.name), componentId

Expected Results

collect(node.name)	componentId
`[David, Emma]`	3
`[Frank]`	5
`[Alice, Bob, Charlie]`	0

Frequently Asked Questions

What is the syntax for calling WCC?

Use CALL algo.WCC(null) YIELD node, componentId or pass a configuration map like CALL algo.WCC({nodeLabels: ['User']}) YIELD node, componentId.

Does WCC consider edge direction?

No. WCC treats all relationships as undirected — it finds components where nodes are reachable through any path regardless of edge direction.

How can I count the number of connected components?

Run CALL algo.WCC(null) YIELD node, componentId RETURN count(DISTINCT componentId) AS numComponents.

When should I use WCC vs CDLP?

Use WCC to find disconnected subgraphs (nodes with no path between them). Use CDLP to detect densely connected communities within a connected graph.

What is the performance of WCC?

WCC runs in O(V + E) linear time, making it very efficient even on large graphs with millions of nodes and edges.
