algo.SSpaths - FalkorDB Docs

The algo.SSpaths procedure returns all shortest paths from a source node to multiple reachable nodes, subject to constraints like cost, path length, and number of paths to return.

Syntax

CALL algo.SSpaths({
  sourceNode: <node>,
  relTypes: [<relationship_type>],
  weightProp: <property>,         // optional
  costProp: <property>,           // optional
  maxCost: <int>,                 // optional
  maxLen: <int>,                  // optional
  relDirection: "outgoing",      // or "incoming", "both"
  pathCount: <int>
})
YIELD path, pathWeight, pathCost

Parameters

Name	Type	Description
`sourceNode`	Node	Starting node
`relTypes`	Array	List of relationship types to follow
`weightProp`	String	Property to minimize along the path (e.g., `dist`, `time`)
`costProp`	String	Property to constrain the total value (optional)
`maxCost`	Integer	Upper bound on total cost (optional)
`maxLen`	Integer	Max number of relationships in the path (optional)
`relDirection`	String	Traversal direction (`outgoing`, `incoming`, `both`)
`pathCount`	Integer	Number of paths to return (0 = all shortest, 1 = default, n = max number of results)

Returns

Name	Type	Description
`path`	Path	Discovered path from source to target
`pathWeight`	Integer	Sum of the weightProp across the path
`pathCost`	Integer	Sum of the costProp across the path (if used)

Examples

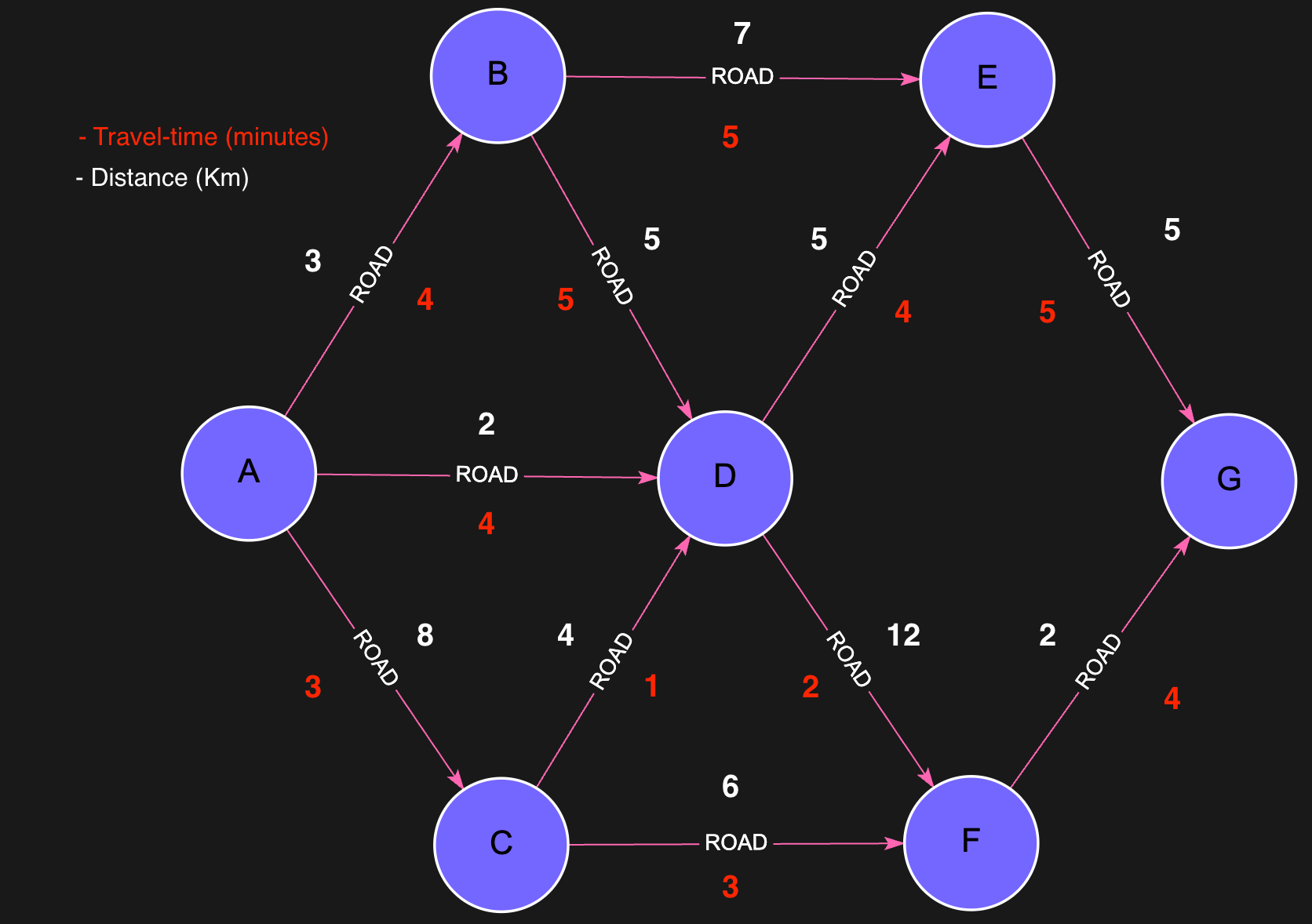

Let’s take this Road Network Graph as an example:

Example: All Shortest Paths by Distance (up to 10 km)

MATCH (a:City{name:'A'})
CALL algo.SSpaths({
  sourceNode: a,
  relTypes: ['Road'],
  costProp: 'dist',
  maxCost: 10,
  pathCount: 1000
})
YIELD path, pathCost
RETURN pathCost, [n in nodes(path) | n.name] AS pathNodes
ORDER BY pathCost

Expected Result:

pathCost	pathNodes
`2`	[A, D]
`3`	[A, B]
`6`	[A, D, C]
`7`	[A, D, E]
`8`	[A, B, D]
`8`	[A, C]
`10`	[A, B, E]

Example: Top 5 Shortest Paths from A by Distance

MATCH (a:City{name:'A'})
CALL algo.SSpaths({
  sourceNode: a,
  relTypes: ['Road'],
  weightProp: 'dist',
  pathCount: 5
})
YIELD path, pathWeight, pathCost
RETURN pathWeight, pathCost, [n in nodes(path) | n.name] AS pathNodes
ORDER BY pathWeight

Expected Result:

pathWeight	pathCost	pathNodes
`2`	`1`	[A, D]
`3`	`1`	[A, B]
`6`	`2`	[A, D, C]
`7`	`2`	[A, D, E]
`8`	`1`	[A, C]

Frequently Asked Questions

How does algo.SSpaths differ from algo.SPpaths?

algo.SSpaths finds paths from a single source to multiple destinations (all reachable nodes). algo.SPpaths finds paths between a specific source-target pair. Use SSpaths for exploration and SPpaths for point-to-point routing.

Can I limit how many paths are returned?

Yes. Use the pathCount parameter. Set it to a specific number (e.g. pathCount: 5) for the top results, or 0 to return all shortest paths.

How do I constrain path results by distance or cost?

Use maxCost with costProp to set an upper bound. For example, costProp: 'dist', maxCost: 10 returns only paths with total distance ≤ 10.

What does the maxLen parameter do?

It limits the maximum number of relationships (hops) in any returned path. This prevents very long paths from being explored, improving performance on dense graphs.

Is weightProp required?

No. If omitted, all edges are treated as having equal weight. The algorithm then finds paths with the fewest hops rather than minimal weighted distance.
