Betweenness Centrality - FalkorDB Docs

Introduction

Betweenness Centrality is a graph algorithm that quantifies the importance of a node based on the number of shortest paths that pass through it. Nodes that frequently occur on shortest paths between other nodes have higher betweenness centrality scores. This makes the algorithm useful for identifying key connectors or brokers within a network.

Algorithm Overview

The core idea of Betweenness Centrality is that a node is more important if it lies on many of the shortest paths connecting other nodes. It’s particularly useful in understanding information flow or communication efficiency in a graph.

For example, in a social network, a person who frequently connects otherwise unconnected groups would have high betweenness centrality.

Syntax

The procedure accepts an optional configuration map:

CALL algo.betweenness({
  nodeLabels: [<node_label>],
  relationshipTypes: [<relationship_type>],
  samplingSize: <int>,
  samplingSeed: <int>
})
YIELD node, score

Parameters

Name	Type	Description	Default
`nodeLabels`	Array	(Optional) List of node labels to include in the computation.	`[]` (all labels)
`relationshipTypes`	Array	(Optional) List of relationship types to traverse.	`[]` (all relationship types)
`samplingSize`	Integer	(Optional) Number of randomly sampled source nodes used to approximate betweenness centrality. Larger values usually improve accuracy but increase runtime. If `samplingSize` exceeds the number of eligible source nodes (nodes matching `nodeLabels`), all eligible source nodes are used.	`32`
`samplingSeed`	Integer	(Optional) Random seed used when sampling source nodes. Use a fixed value for reproducible results. If omitted (or set to `0`), a time-based seed is used and results may vary between runs.	`0` (time-based)

Yield

Name	Type	Description
`node`	Node	The node being evaluated
`score`	Float	The betweenness centrality score for the node

Example

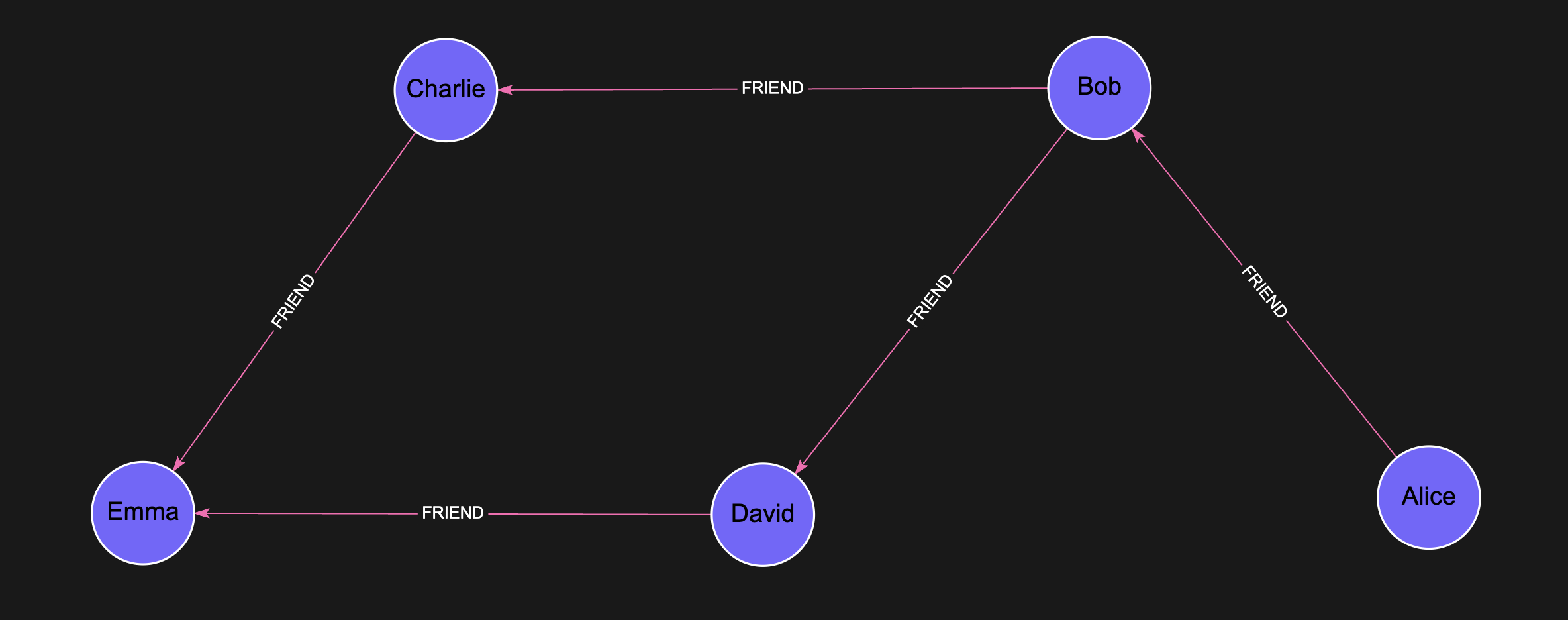

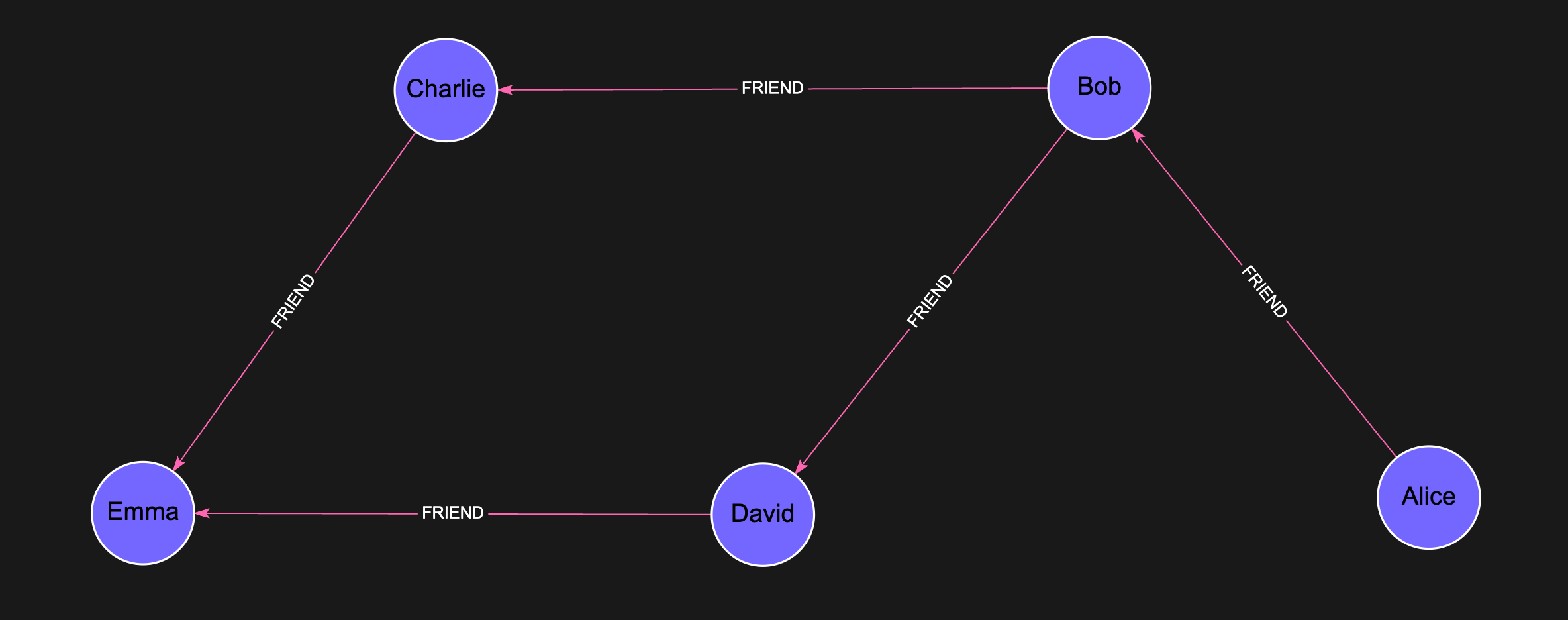

Let’s take this Social Graph as an example:

Create the Graph

CREATE
  (a:Person {name: 'Alice'}),
  (b:Person {name: 'Bob'}),
  (c:Person {name: 'Charlie'}),
  (d:Person {name: 'David'}),
  (e:Person {name: 'Emma'}),
  (a)-[:FRIEND]->(b),
  (b)-[:FRIEND]->(c),
  (b)-[:FRIEND]->(d),
  (c)-[:FRIEND]->(e),
  (d)-[:FRIEND]->(e)

Run Betweenness Centrality - Sort Persons by importance based on FRIEND relationship

CALL algo.betweenness({
    'nodeLabels': ['Person'],
    'relationshipTypes': ['FRIEND']
    })
YIELD node, score
RETURN node.name AS person, score
ORDER BY score DESC

Expected result:

person	score
`Bob`	6
`Charlie`	2
`David`	2
`Alice`	0
`Emma`	0

Usage Notes

Scores are based on all shortest paths between node pairs.
Nodes that serve as bridges between clusters tend to score higher.
Betweenness Centrality can be computationally expensive on large, dense graphs.
Use samplingSize to trade accuracy for performance (larger samples are slower but usually more accurate).
Set samplingSeed to a fixed value to make runs reproducible; if you omit it, results may vary between runs due to random sampling.

Frequently Asked Questions

What is the call syntax for Betweenness Centrality?

Use CALL algo.betweenness({nodeLabels: ['Label'], relationshipTypes: ['TYPE']}) YIELD node, score. All configuration parameters are optional.

Why do my results change between runs?

By default, the algorithm uses random sampling with a time-based seed. Set samplingSeed to a fixed integer value (e.g. samplingSeed: 42) for reproducible results.

How does samplingSize affect accuracy?

The samplingSize parameter controls how many source nodes are sampled for approximation. Larger values yield more accurate results but increase computation time. The default is 32.

When should I use Betweenness Centrality vs PageRank?

Use Betweenness Centrality to find bridge or broker nodes connecting different clusters. Use PageRank to measure overall node influence based on incoming link quantity and quality.

Can Betweenness Centrality run on large graphs?

Yes, but it can be expensive on very large, dense graphs. Use the samplingSize parameter to trade accuracy for speed, and filter with nodeLabels/relationshipTypes to reduce the computation scope.
